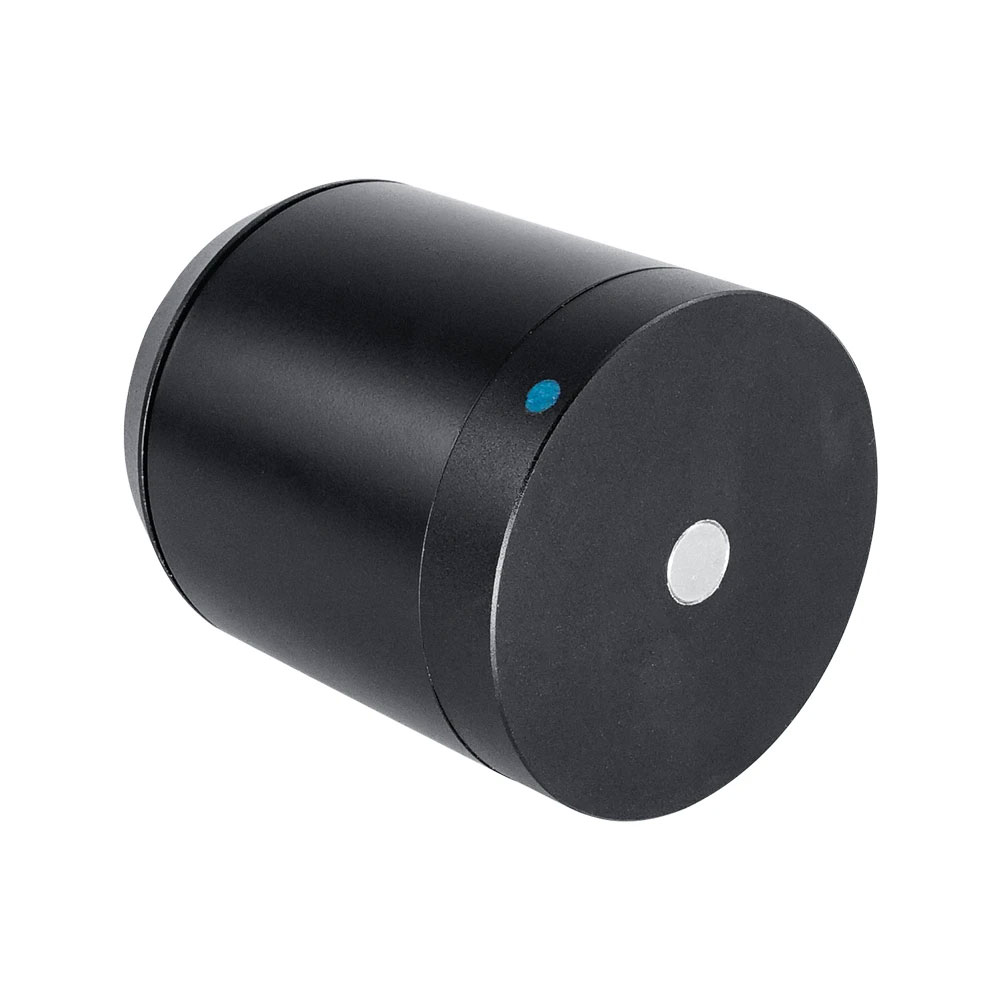

Flipsky 6374 Battle Hardened Electric Motor Flipsky 6374 Battle Hardened Electric Motor Rear Flipsky 6374 Battle Hardened Electric Motor Front Flipsky 6374 Battle Hardened Electric Motor Details Flipsky 6374 Battle Hardened Electric Motor Magnets Flipsky 6374 Battle Hardened Electric Motor Flipsky 6374 Battle Hardened Electric Motor Sizes Flipsky 6374 Battle Hardened Electric Motor Cabling Flipsky 6374 Battle Hardened Electric Motor Sensors Flipsky 6374 Battle Hardened Electric Motor Bearings Flipsky 6374 Battle Hardened Electric Motor Windings

Flipsky 6374 Battle Hardened Electric Motor

These Flipsky 6374 are great value reliable motors for electric boards. Evolved over a few years they have been improved to give great reliable performance.

RRP £127.00 £109.95
(UK VAT Included in Price)
In Stock & available for UK next day delivery

These Flipsky 6374 Electric motors have been super popular for electric skateboards for several years and for good reason, they are reasonably priced and reliable motors. They have been refined over the time and are now called "Battle Hardened" this means the magnets are epoxy glued to the case for extra durability from impacts and vibration. The bearings on the motor shaft have grown bigger to be stronger and the main shaft is now 10mm and this version steps down to 8mm with a keyway.  The sensors are fixed securely and the temp sensor gives a good accurate reading for low temps for a almost sealed motor.

Looking for a budget friendly motor for electric  skateboard or mountainboard then these are ideal just check the sizes to see if they will fit your mounts.

This motor is diameter 63mm and overall length of 74mm so compatible with a lot of mounting systems but beware although the motor shaft is 34mm long there is a step in the shaft 26mm in so this will not fit some mounts that need the 8mm to go all the way to the front of the can.   We also have a bigger version of this motor for bigger riders and more extreme torquey riding.

What KV do I need?

We sell these motors with a few different KV values. KV is the revolutions per minuite rpm of the motor when 1v is applied and no load. So basically a higher KV motor will achieve a higher top speed with the same board (i.e. gearings, voltage etc). But motors are most efficient at the faster turning end of their range so if wanting more torque at lower speeds then a lower KV motor is more desirable. But more torque can also be from longer magnets and windings not just the KV value so it's always a balance to choose. If interested to check and compare speeds then check out the esk8 calculator



The cables are pre-soldered and braided with 4mm bullet connectors and hall sensor plug ready to connect. All motors have been checked with vesc tool detection before shipping to ensure there are no problems. We test and warranty all these motors for general esk8 use. If plugs are changed or soldered or water damage is evident then warranty is voided. Please check motor is working  yourself before changing any connections.

Flipsky 6374 Electric Motor Specifications:

  • KV: 140/170/190KV
  • Max Power: 3500Watts
  • Max Current: 85 Amps
  • Max Volts: 12S
  • Max Torque: 8Nm
  • Motor Resistance: 0.05Ohm
  • The number of pole: 14
  • Hall Sensor Voltage 5V
  • Net weight: 980g
  • Motor wire: 12AWG
  • Shaft size : 8mm (Stepped from 10mm)
  • The screws used for the motor are M4 metric bolts.  Depth inside motor is 5mm.
  • Screws to mount the motor are not included with the motor.
  • Female Bullet connectors and keyway are included.

Flipsky 6384 Electric Motor Sizes

Loading related products...

Flipsky Electronic Products Warranty:

All ESC and motors are 100% tested and shipped as a good product before shipment. Any uncertain connection or information for VESC/Motors settings, please contact us before your installation.

The warranty period for Flipsky consumable electronic products (eg. VESC/Motor/Battery/Remote/Antispark switch) is guaranteed for 2 months since shipment. Please contact ATBShop to process the after-sale service. You can return it to us for analysis as a manufacturing failure. If the replacement or repair is not possible for you, a discount can be provided for the new replacement.

The following conditions are not covered by the above warranty:

  • Cannot provide purchase channel source proof
  • Mechanical damage to electronic components or PCB
  • PCBA board has repair soldering iron traces (excluding solder the cable bullet connectors)
  • Wire damage or external impact damage
  • (For non-waterproof products) there is water inflow
  • Abnormal applications beyond the product specifications
