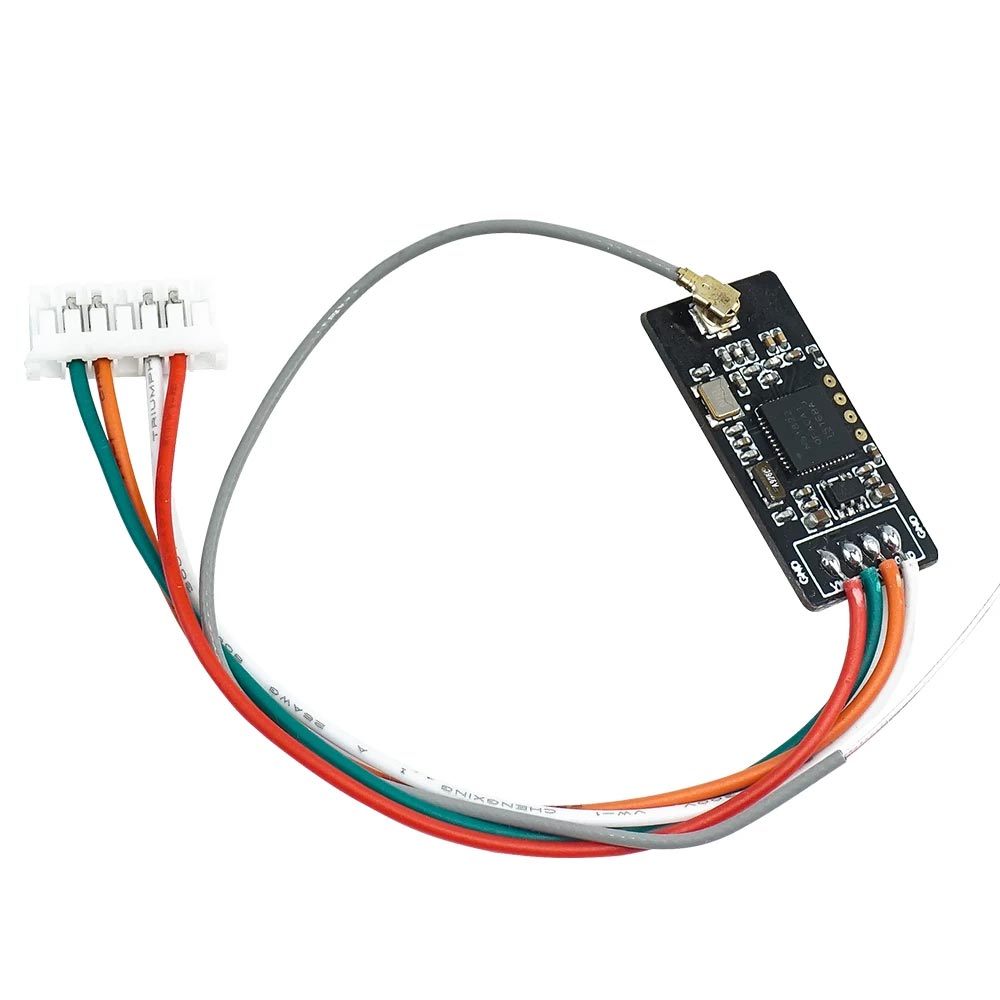

Flipsky Bluetooth Module 2.5G Wireless
The Flipsky Bluetooth module is based off the nrf51_vesc project connection protocol and allows bluetooth connection via VESC Tool App to ESC. May work on other VESC Based ESCs.

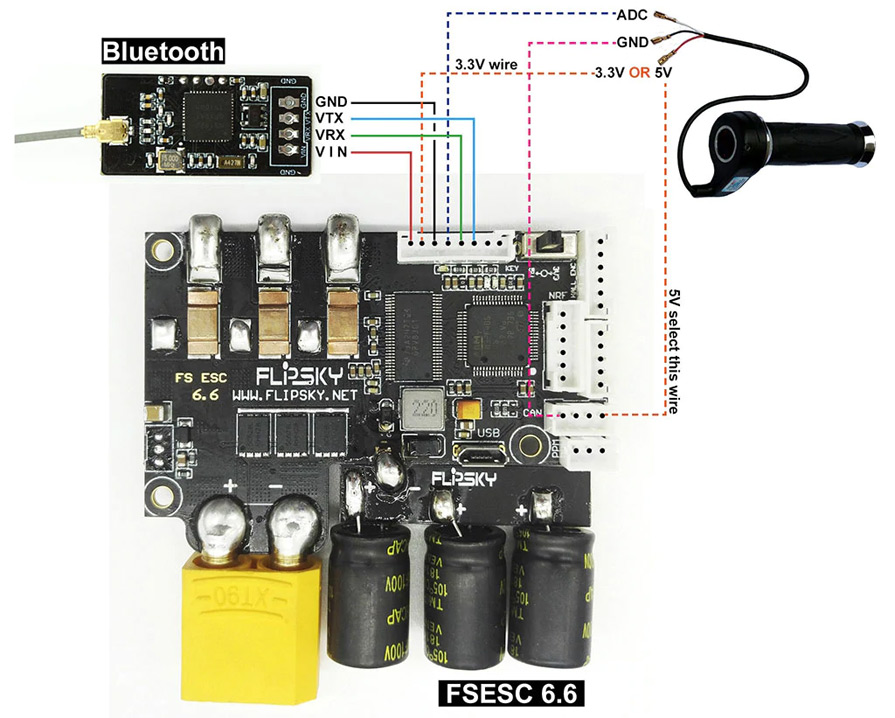

The Flipsky Bluetooth module is based off the nrf51_vesc project connection protocol and allows bluetooth connection via VESC Tool App to ESC. May work on other VESC Based ESCs but has not been tested. Supplied with a VESC6 cable as shown in below wiring picture but can be modified to VESC4 by cutting plug down and flipping Rx Tx cables around.
Flipsky Bluetooth Module 2.5G Wireless Features and Specifcations:
- Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud
- Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822
- Actual use distance: The distance to communicate with VESC is about 15 meters
- Frequency range: 2.4GHz
- 2.4 GHz multiprotololl RF receiver
- ARM Cortex -M0 32 bit processor
- 256kB flash & 16kB RAM
- PCB size：27mm*13mm
- 2.0mm seven-pin four-wire connector length：90mm
- Antenna length：145mm
- net weight：3.5g
Flipsky Electronic Products Warranty:
All ESC and motors are 100% tested and shipped as a good product before shipment. Any uncertain connection or information for VESC/Motors settings, please contact us before your installation.
The warranty period for Flipsky consumable electronic products (eg. VESC/Motor/Battery/Remote/Antispark switch) is guaranteed for 2 months since shipment. Please contact ATBShop to process the after-sale service. You can return it to us for analysis as a manufacturing failure. If the replacement or repair is not possible for you, a discount can be provided for the new replacement.
The following conditions are not covered by the above warranty:
- Cannot provide purchase channel source proof
- Mechanical damage to electronic components or PCB
- PCBA board has repair soldering iron traces (excluding solder the cable bullet connectors)
- Wire damage or external impact damage
- (For non-waterproof products) there is water inflow
- Abnormal applications beyond the product specifications
