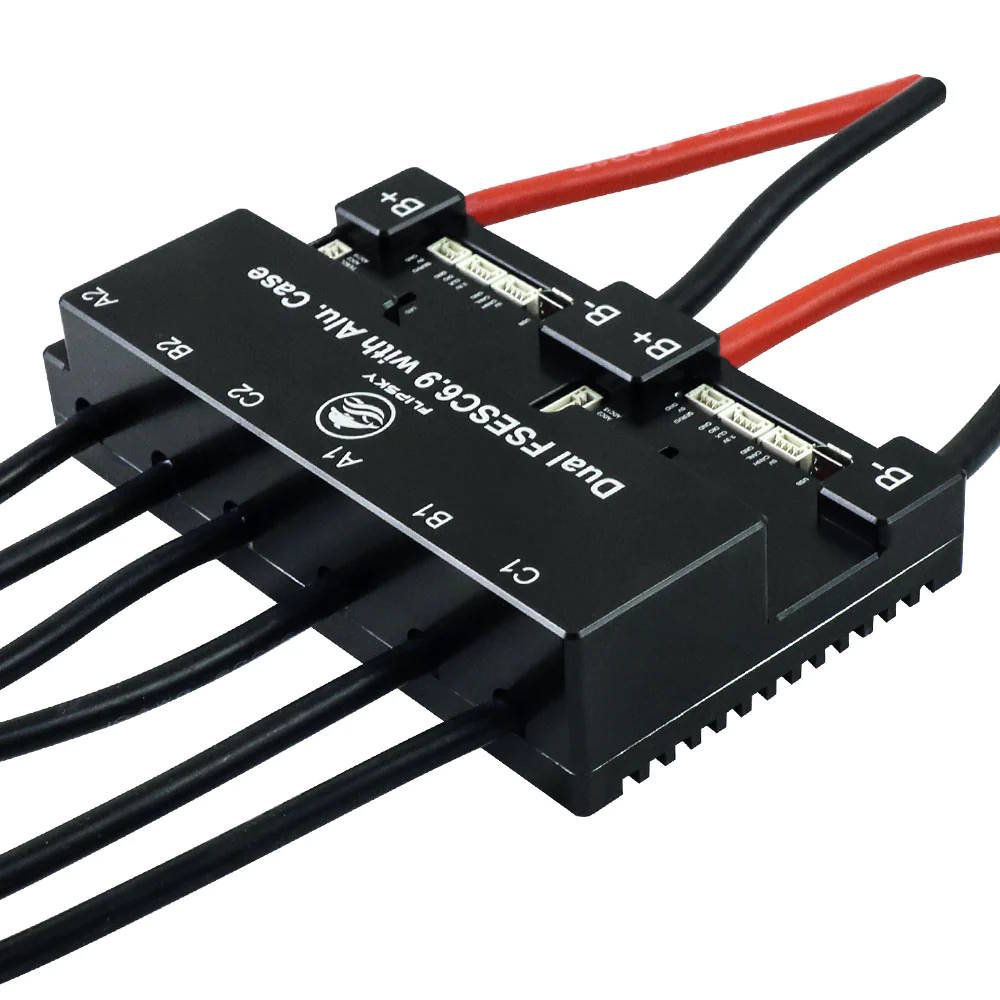

Flipsky Dual FSESC6.9 200A with Aluminum Case Speed Controller
This is a Dual Motor Speed Controller based of VESC Project firmware with aluminium case to provide great heat dissipation. Continuous 100A per motor 4-12S Battery Systems.
This is a new ESC from Flipsky but is based off the popular VESC 6.6 hardware but with better heat dissipation which is great for high power setups. It is ideal for most 12S based boards with 100A per motor continuous motor current it can handle the power well with Aluminium case dissipates the heat well which was always more of a problem with previous Flipsky units where you added your own heatsink. Please do make sure this unit is vented to air to disperse the heat over time not mount inside a box.

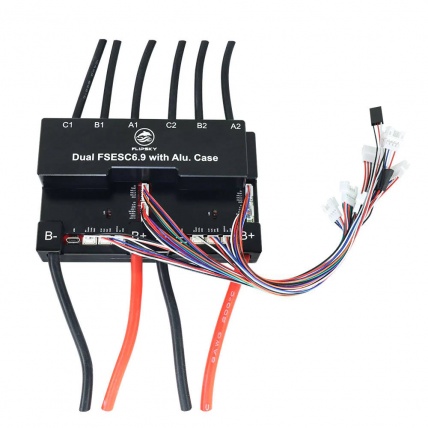

This ESC unit comes pre-soldered with 2 x XT90 connectors on the 8AWG cables for power and has 10AWG cables for large bullet connectors. Fly leads are also included for all connections to the ESC, check the wiring diagram below.
A great dual speed controller for power hungry users now with better heat dissipation solves the only problem with the older hardware!
Flipsky Dual FSESC6.9 200A with Aluminum Case Speed Controller Specifications:
- Firmware: Ships with 5.2 and recommended keep this version. New firmware upgrade can damage the ESC
- Continuous current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting and ambient temperature around the device!
- Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
- BEC: 5V@1A,5V/1A output for external electronics
- ERPM: 150000
- Control Interface Ports: USB,CAN,UART
- Supported Sensors: ABI, HALL, AS5047, S5048A
- Input Set Support: PPM, ADC, NRF, UART, SPI, IIC
- Modes: DC, BLDC, FOC (sinusoidal)
- Regenerative capacity: Yes
- Programmable: Yes
- Motor wire: 10AWG
- Power cable: 8AWG Supplied with 2 x XT90 Connections
- Size:127.6x78.4x32.5mm (Including Alu case)
Flipsky Electronic Products Warranty:
All ESC and motors are 100% tested and shipped as a good product before shipment. Any uncertain connection or information for VESC/Motors settings, please contact us before your installation.
The warranty period for Flipsky consumable electronic products (eg. VESC/Motor/Battery/Remote/Antispark switch) is guaranteed for 2 months since shipment. Please contact ATBShop to process the after-sale service. You can return it to us for analysis as a manufacturing failure. If the replacement or repair is not possible for you, a discount can be provided for the new replacement.
The following conditions are not covered by the above warranty:
- Cannot provide purchase channel source proof
- Mechanical damage to electronic components or PCB
- PCBA board has repair soldering iron traces (excluding solder the cable bullet connectors)
- Wire damage or external impact damage
- (For non-waterproof products) there is water inflow
- Abnormal applications beyond the product specifications
