Flipsky Dual Mini FSESC6.7 Pro 140A Speed Controller
The Flipsky Mini FSESC6.7 Pro is a Dual Motor Speed Controller based of VESC Project firmware built small for compact fitment. Continuous 70A per motor 4-12S Battery Systems.
The Flipsky Dual Mini FSESC6.7 Pro 140A Speed Controller is a neat little controller in a small size for electric skateboards and other devices wanting to power two motors. Safe for 4-12S systems and can sustain 70A continuous power output per motor it can still pack a punch. But the heatsink is quite small for this controller so it really needs to be attached to a larger heatsink that is vented to air for heat dissipation. Also unlike some other ESC's this one is not enclosed in a case so needs the components protecting from damage and dirt/water. But all that being said then it's a great price and power combination for smaller boards or riders not wanting the maximum power or price! This would still be quite an upgrade compared to stock ESC's in factory built skateboards.
The Flipsky Dual Mini FSESC6.7 is a great budget ESC for many applications with a bit of DIY for enclosure and Heatsink it works great for super price!
If you are looking for a case and heatsink for this unit to bolt onto a mountainboard then we recommend our ATBShop Simple ESC case with heatsink. Use the Unity/Xenth with heatsink option and then attach this unit with Double sided heat tape (mention with order and we will include the tape for free).
Flipsky Dual Mini FSESC6.7 Pro 140A Speed Controller Specs:
- Firmware: VESC Project Version 5.2 Shipped and recommended, newer firmware may damage the controller.
- Continuous current: 140A; instantaneous current: 400A
- Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
- BEC: 5V@1A
- ERPM: 150000
- Control Interface Ports:USB,CAN,UART,SPI, IIC
- Supported Sensors:ABI，HALL，AS5047，AS5048A
- Input Set Support: PPM, ADC, NRF, UART
- Modes: DC, BLDC, FOC (sinusoidal)
- Regenerative capacity: Yes
- Programmable: Yes
- Motor wire: 12AWG
- Power cable:14AWG (with XT90 connector)

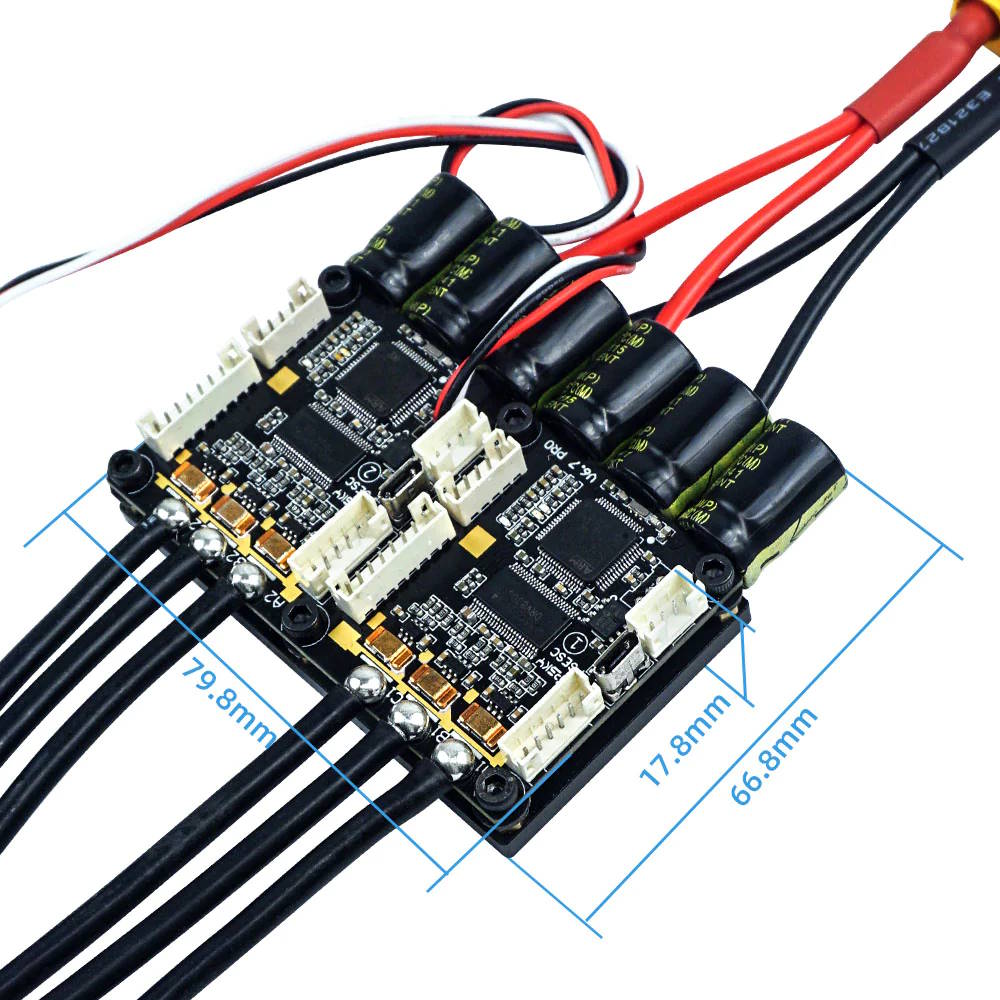

- Size:79.8 x 66.8 x17.8mm
Flipsky Electronic Products Warranty:
All ESC and motors are 100% tested and shipped as a good product before shipment. Any uncertain connection or information for VESC/Motors settings, please contact us before your installation.
The warranty period for Flipsky consumable electronic products (eg. VESC/Motor/Battery/Remote/Antispark switch) is guaranteed for 2 months since shipment. Please contact ATBShop to process the after-sale service. You can return it to us for analysis as a manufacturing failure. If the replacement or repair is not possible for you, a discount can be provided for the new replacement.
The following conditions are not covered by the above warranty:
- Cannot provide purchase channel source proof
- Mechanical damage to electronic components or PCB
- PCBA board has repair soldering iron traces (excluding solder the cable bullet connectors)
- Wire damage or external impact damage
- (For non-waterproof products) there is water inflow
- Abnormal applications beyond the product specifications
